Fixed Mount Barcode Scanners
A fixed mount barcode scanner sits over a conveyor or inside a machine and reads every part that passes, triggered by the PLC, a sensor or continuously. Six models, from a 20 g module to a smart reader with code grading.
- PLC protocolsVS110R · VS210 · VS600E
- Smallest readerVS90 / VS95, 44.5 × 36.0 × 23.0 mm
- Code gradingVS210, ISO/IEC 15416 · 15415 · 29158
- Interchangeable lensVS600E, M12, 6 / 8 / 12 / 16 mm
- For embeddingVS80 module, 20 g
| VS110R | VS95 | VS210 | VS600E | VS90 | VS80 | |
|---|---|---|---|---|---|---|
| Imaging | ||||||
| Resolution | 1280 × 1024 / 1920 × 1200 | 1280 × 1024 | To confirm | 1920 × 1200 | 1280 × 1024 | 1280 × 1024 |
| Frame rate | 60 / 30 fps | 60 fps | – | 60 fps | 60 fps | – |
| Focus | Fixed / software-adjustable | Fixed | To confirm | Fixed, M12 lens | Fixed | – |
| Illumination | Red LED, white / blue optional | Red LED | To confirm | White LED, red / blue optional | Red LED, white / blue optional | White LED |
| Connection | ||||||
| PROFINET | Yes | – | Yes | Yes | – | – |
| EtherNet/IP | Yes | – | Yes | Yes | – | – |
| Modbus TCP | Yes | – | Yes | Yes | – | – |
| Other | MC, Modbus RTU, TCP/UDP, FTP | TCP/IP | TCP/IP | TCP/IP | – | – |
| Ports | RS232 (DB9) · Ethernet | RS232C (DB9) · Ethernet | RS232C · Ethernet | RS232 · Ethernet | RS232C · USB HID / COM | USB · RS232 |
| Digital I/O | 1 in / 2 out | 1 in / 2 out | 2 in / 3 out | 1 in / 1 out | 1 in / 2 out | – |
| Mechanical | ||||||
| Supply | 24 VDC ±10% | 5–24 VDC | 24 VDC ±10% | 24 VDC ±10% | 5–30 VDC | 5–24 V |
| Size, mm | 45.4 × 47.0 × 29.87 | 44.5 × 36.0 × 23.0 | 101.2 × 55 × 51.7 | 60 × 68 × 39.1 | 44.5 × 36.0 × 23.0 | 32 × 15.1 × 16.5 |
| Weight | 133 g | 101 g | 280 g | 240 g | 101 g | 20 g |
| Protection | IP54 | IP54 | To confirm | IP54 | IP54 | – |
| Housing | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy | – |
| Software | IDManager | IDManager | IDManager | IDManager | ScanSet | – |
“–” means the datasheet does not state it. “To confirm” means the value is being checked with the factory. IP ratings apply with the cable connected.
The six models
Full comparison incl. handhelds
ReadCell VS110R
AI processor and the widest protocol list in the range, in a 133 g body.
- Variants
- VS110-R264 · VS110-R220
- Protocols
- PROFINET · EtherNet/IP · Modbus TCP · MC
ReadCell VS95
Ultra-compact reader for moving machine axes and lines with little space.
- Depth of field
- Code 128 13 mil: 6–43 cm
- Interfaces
- RS232C (DB9) · Ethernet, TCP/IP
ReadCell VS210
Reads and grades. For rotary fixtures, metal DPM parts and multi-side box reading.
- Min. element
- 2D 0.023 mm, 1D 0.051 mm
- Decode time
- <10 ms minimum

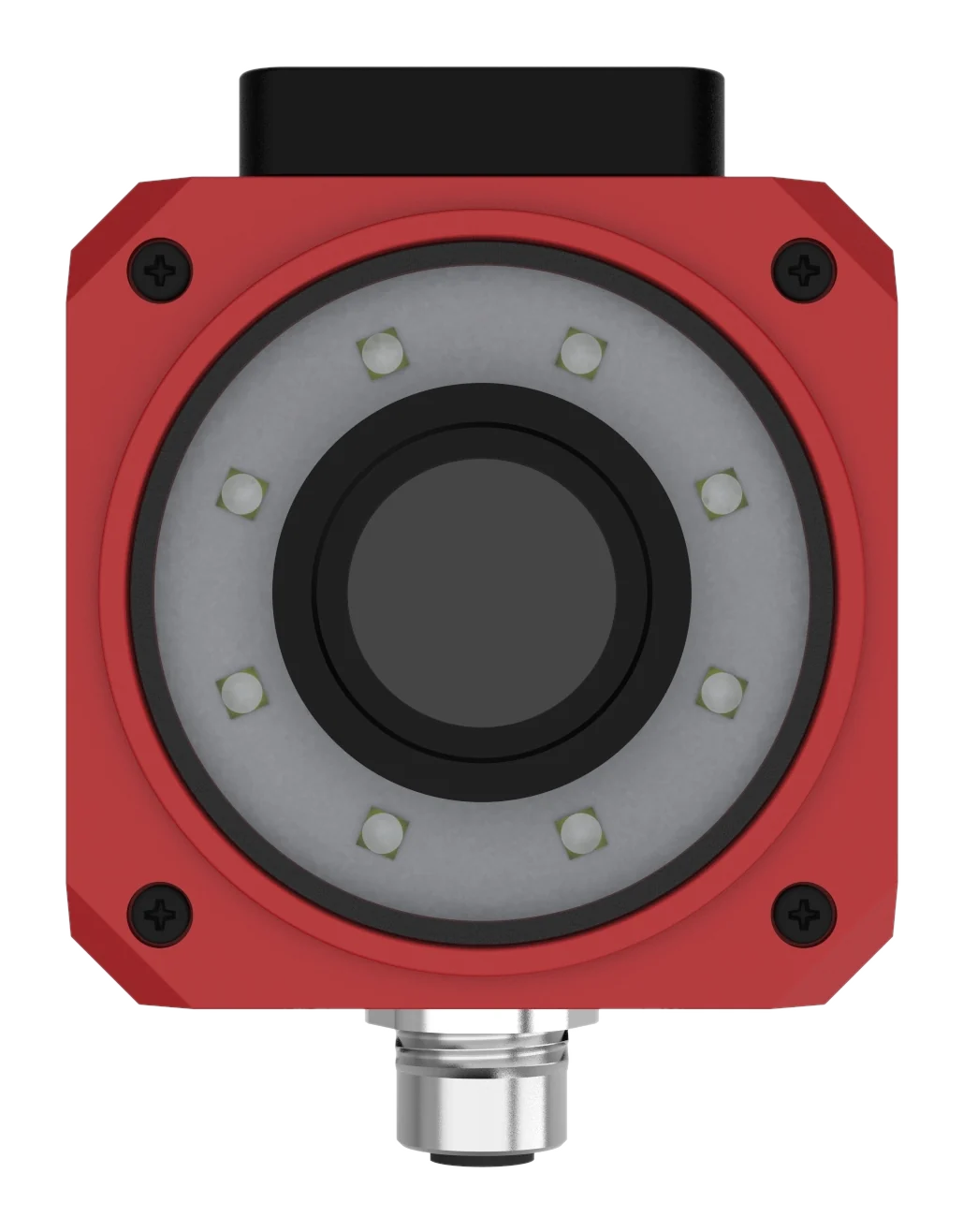

ReadCell VS600E
Pick the focal length for the distance: 6, 8, 12 or 16 mm.
- Sensor
- 1/2.5" global shutter, 1920 × 1200
- Protocols
- PROFINET · EtherNet/IP · Modbus TCP
ReadCell VS90
Same small aluminum body as VS95, with USB and serial instead of Ethernet.
- Current
- 130 mA at 24 V, typical
- Aimer
- Red laser, 650 nm
ReadCell VS80
Build 2D reading into machines and terminals with little room inside.
- Shock
- 2000 G, 0.7 ms, half sine
- Symbologies
- 32 listed, incl. Data Matrix, QR, Han Xin
Choosing a fixed mount reader
Do I need a smart reader, or is a compact one enough?
If the reader talks straight to a Siemens, Omron or other PLC over PROFINET, EtherNet/IP or Modbus TCP, choose VS110R, VS210 or VS600E. If a TCP/IP socket, serial or USB connection to a PC or controller is enough, VS95 or VS90 saves space and cost.
What triggers a read?
The PLC over the industrial protocol, a sensor wired to the digital input, or continuous reading. Results go back over the same connection; the digital outputs can drive a lamp or reject gate.
Can one reader cover a wide conveyor?
Field of view depends on the model, lens and distance. Send us the code size, the field you need to cover and the mounting distance, and we will check it before you order.
Which software configures them?
IDManager for VS95, VS110R, VS210 and VS600E; ScanSet for VS90. Both are in the download center.
