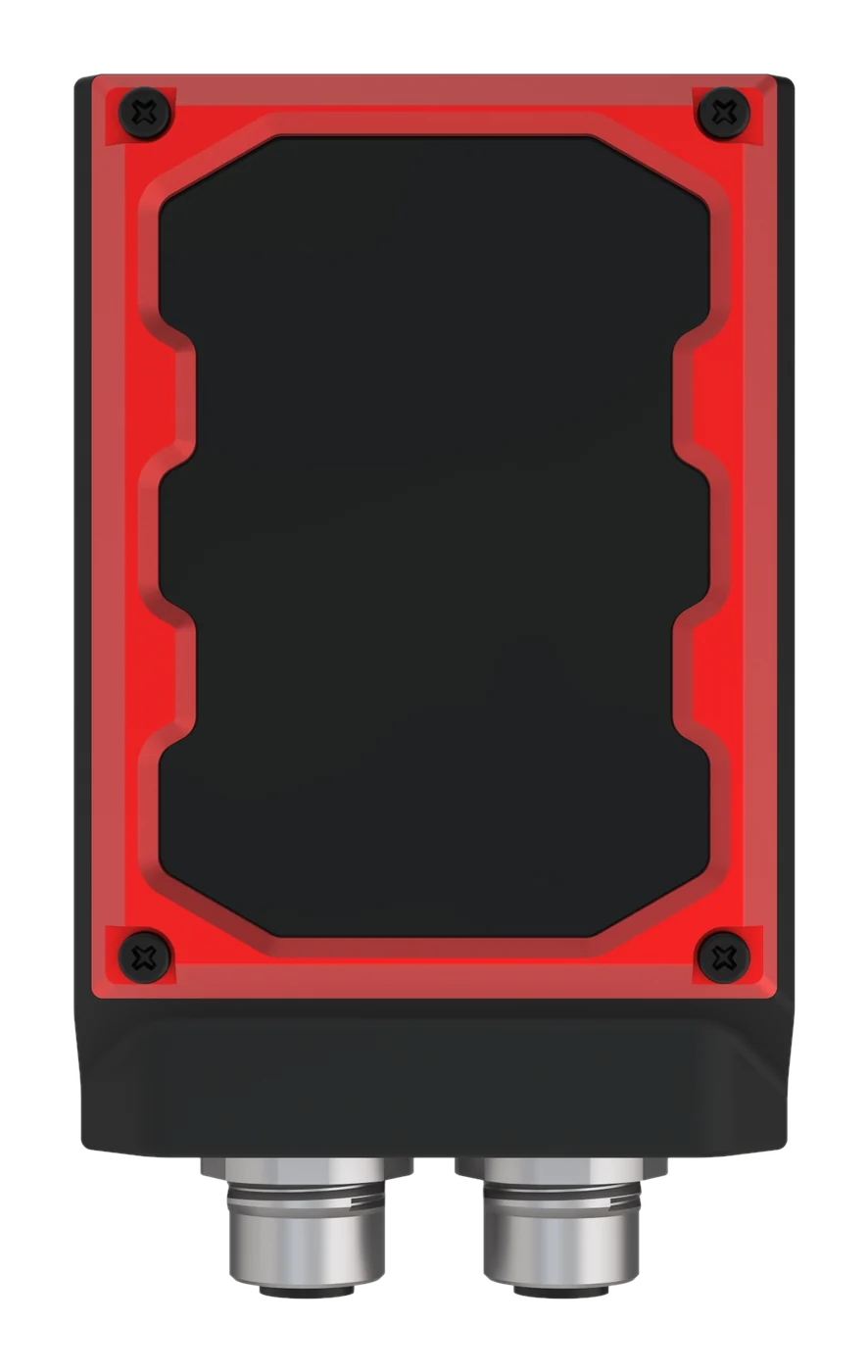

ReadCell VS210 smart code reader
Reads and grades. An AI smart code reader with code quality grading to ISO/IEC 15416, 15415 and 29158, for rotary fixtures, metal DPM parts and multi-side box reading.
For codes that also need a grade
The ReadCell VS210 decodes codes and grades their quality. It resolves 2D elements down to 0.023 mm, focuses itself when you set up the station, and talks to the PLC directly.
- Code quality grading to ISO/IEC 15416, 15415 and 29158
- Minimum element 0.023 mm (2D) and 0.051 mm (1D), standard version
- Auto-focus, triggered from the configuration software, for fast installation
- PROFINET, EtherNet/IP, Modbus TCP and TCP/IP
- Two digital inputs and three outputs
- White LED, direct and polarized; red or blue optional
- Aluminum alloy housing, IP65 with cable connected
Used in
Specifications
From the ReadCell VS210 datasheet, revision C.
| Image sensor | Global shutter CMOS, monochrome |
|---|---|
| Resolution | 1920 × 1200 standard; 2592 × 1944 optional |
| Focus | Auto-focus, triggered from the configuration software; fixed focus optional |
| Field of view | 135 × 100 mm at 300 mm working distance, typical |
| Illumination | White LED, direct and polarized; red or blue optional |
| Aimer | Green LED |
| Minimum element | Standard version: 1D 0.051 mm, 2D 0.023 mm Wide-angle version: 1D 0.051 mm, 2D 0.051 mm |
| Minimum decode time | <10 ms |
| 1D | Codabar, Code 39, Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E0, UPC-E1, EAN/JAN-13, EAN/JAN-8, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post, COOP 2 of 5 |
|---|---|
| 2D and stacked | QR Code, Data Matrix, PDF417, MicroPDF417, Aztec, MaxiCode, Han Xin, GS1 Composite, Codablock A, Codablock F, Micro QR, GS1 DataMatrix, DotCode |
| Code grading | ISO/IEC 15416 · ISO/IEC 15415 · ISO/IEC 29158 |
| Interfaces | RS232C (convertible to USB) · Ethernet |
|---|---|
| Protocols | TCP/IP · PROFINET · Modbus TCP · EtherNet/IP |
| Digital I/O | 2 inputs · 3 outputs |
| Configuration software | IDManager |
| Power supply | 24 VDC ±10% |
|---|---|
| Current, typical | 2000 mA operating · 200 mA standby |
| Dimensions | 101.2 × 55 × 51.7 mm |
| Weight | 280 g |
| Housing | Aluminum alloy |
| Protection | IP65 with cable connected |
| Vibration | 10–55 Hz, double amplitude 0.75 mm, 3 h each in X, Y and Z |
| Operating temperature | −10 to 50 °C |
| Storage temperature | −20 to 70 °C |
| Humidity | 5% to 85% RH, non-condensing |
| Ambient light | 0 to 100,000 lux |
Connect it to your PLC
All integration guidesThe same device files and examples as ReadCell VS110R and VS600E.
Files
The datasheet downloads directly. The other files we send by email on request.
VS210 questions
Which grading standards does it follow?
ISO/IEC 15416, ISO/IEC 15415 and ISO/IEC 29158, as listed on the datasheet. Tell us the code type and the grade your customer requires, and we will check it against your parts.
How is the focus set?
Mount the reader, then start auto-focus from the configuration software (IDManager). A fixed-focus version is listed as an option on the datasheet.
Which PLCs can it talk to?
Any PLC with PROFINET, EtherNet/IP or Modbus TCP, plus hosts using a TCP/IP socket or RS232C.
How is it powered?
24 VDC ±10%, about 2000 mA when operating. Size the supply for that.
Quote a ReadCell VS210.
Tell us the quantity, the code you need to grade and the PLC.
