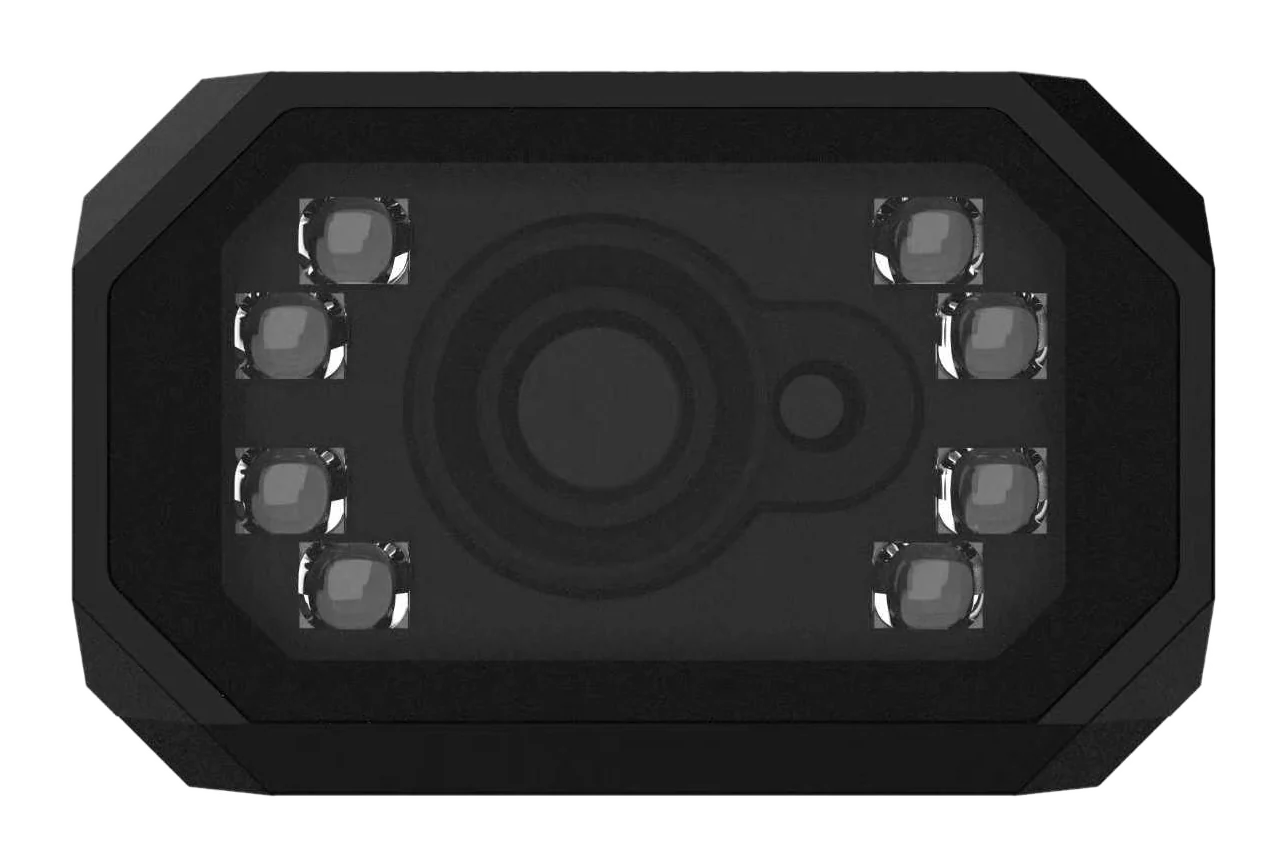

ReadCell VS110R smart code reader
An AI processor and nine communication protocols in a 133 g aluminum body. Two sensor versions: 1.3 MP for speed, 2.3 MP with software-adjustable focus for flexible mounting.
Built for the station that has no room
The VS110R is one of the two readers 3C electronics lines ask us for most. It fits beside a PCB conveyor or inside a test fixture, and talks to the PLC directly.
- Compact aluminum alloy housing, 45.4 × 47.0 × 29.87 mm
- High-performance AI processor with AI decoding algorithms
- PROFINET, EtherNet/IP, Modbus TCP, MC protocol and Modbus RTU
- One digital input and two outputs for trigger, lamp or reject gate
- Software-adjustable focus on the 2.3 MP version
- Red LED illumination, with white, blue or half-polarized options
Used in
Two versions
Same housing, interfaces and protocols. Choose by speed or by mounting flexibility.
1.3 MP, fixed focus
For fast lines where the distance to the code does not change.
- Sensor
- Global shutter, monochrome, 1.3 MP
- Resolution
- 1280 × 1024
- Frame rate
- 60 fps
- Focus
- Fixed
2.3 MP, adjustable focus
For higher image resolution and stations where the mounting distance varies.
- Sensor
- Global shutter, monochrome, 2.3 MP
- Resolution
- 1920 × 1200
- Frame rate
- 30 fps
- Focus
- Software-adjustable
Specifications
From the ReadCell VS110R datasheet, revision A.
| Image sensor | Global shutter, monochrome; 1.3 MP or 2.3 MP |
|---|---|
| Resolution | 1280 × 1024 (R264) · 1920 × 1200 (R220) |
| Illumination | Red LED; white or blue optional; half-polarized optional |
| Aimer | 650 nm laser |
| Symbologies | 1D: Code 39, Code 128, UPC and others 2D: QR Code, Data Matrix, PDF417 and others |
| Interfaces | RS232 (DB9) · 100 Mbit Ethernet |
|---|---|
| Protocols | TCP/IP server and client · UDP · FTP · PROFINET · Modbus TCP · EtherNet/IP · MC protocol · Modbus RTU |
| Digital I/O | 1 input · 2 outputs |
| Configuration software | IDManager |
| Power supply | 24 VDC ±10% |
|---|---|
| Current, typical | 700 mA operating · 200 mA standby |
| Dimensions | 45.4 × 47.0 × 29.87 mm |
| Weight | 133 g |
| Housing | Aluminum alloy |
| Protection | IP54 with cable connected |
| Operating temperature | −10 to 50 °C |
| Storage temperature | −20 to 70 °C |
| Humidity | 5% to 85% RH, non-condensing |
Connect it to your PLC
All integration guidesThe VS110R is the only model in the range that also speaks Mitsubishi MC protocol.
VS110R questions
R264 or R220: which should I order?
R264 has the faster frame rate (60 fps) and fixed focus, for a fixed distance. R220 has the higher resolution (1920 × 1200) and software-adjustable focus, for a varying distance. Send us the code size and distance if unsure.
Which PLCs can it talk to?
Any PLC with PROFINET, EtherNet/IP, Modbus TCP or Mitsubishi MC protocol, plus hosts using a TCP/IP or UDP socket, FTP or Modbus RTU.
How is it powered?
24 VDC ±10%, about 700 mA when operating.
Can it carry our brand?
Yes. See OEM and private label for the options; MOQ is quoted per project.
Quote a ReadCell VS110R.
Tell us the quantity, the version and the PLC.
