Barcode readers for PCB and SMT traceability

Every board carries a code, and every station needs to read it before the board moves on. Electronics lines are where most of our readers work, and the two compact models there are the ReadCell VS95 and VS110R.

Plan a station with us ReadCell VS110R

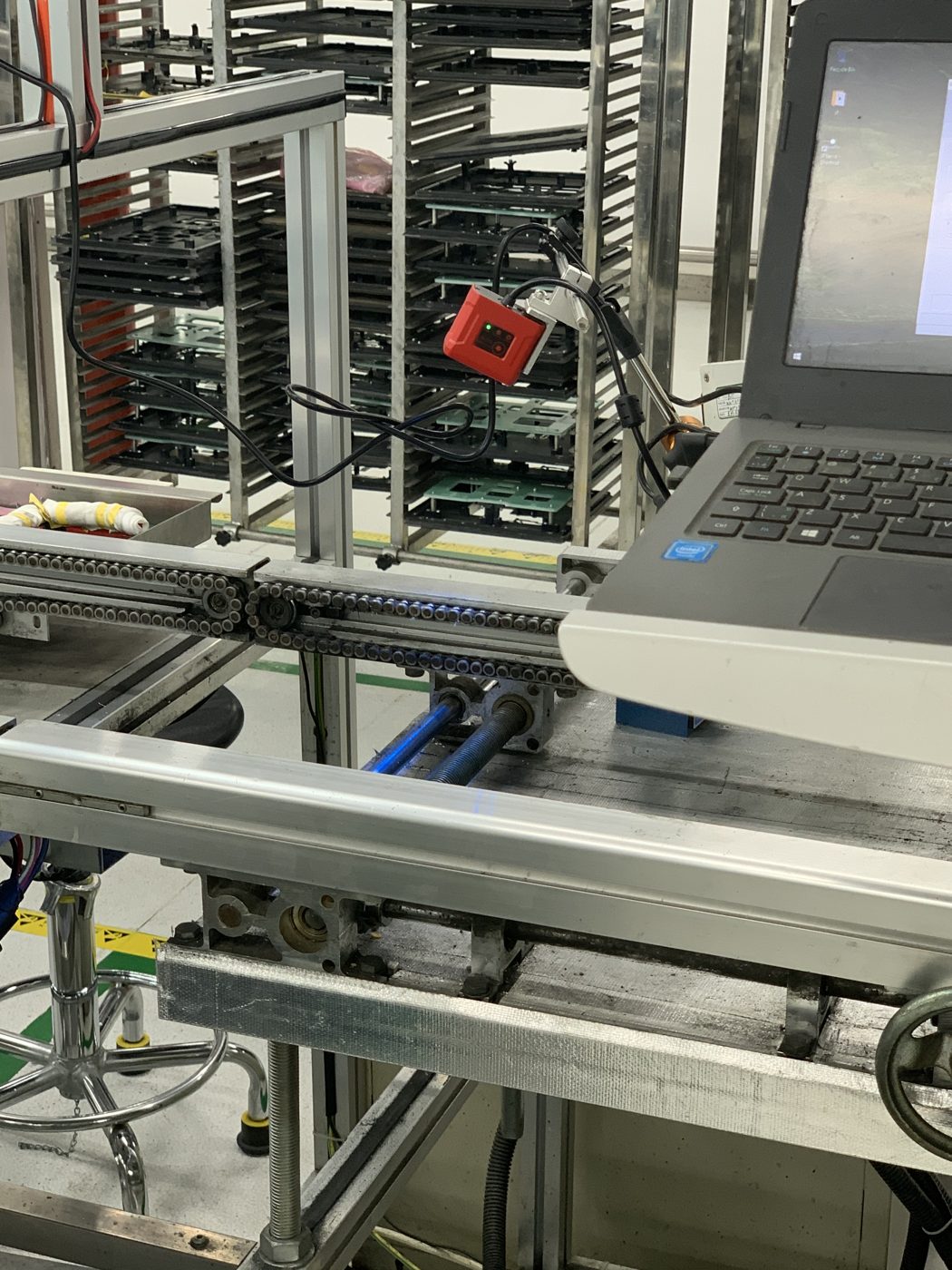

Compact red code reader mounted at a PCB magazine rack — A compact reader at a PCB magazine rack on an SMT line.

Where the reader goes

Typical read points on an SMT and assembly line.

01Board loading

Read the panel serial as the board enters the line.

02Between stations

Read again before each board flows on, so every step is logged to the serial.

03Solder paste

Read jars on a rotary table before the paste goes into the printer.

04Magazines and racks

Read boards going into and out of the magazine rack.

05Several readers, one station

Combine readers to cover more than one side or more than one code.

Solder paste jars read on a rotary table.

Which reader for which station

The station talks to a PLC

ReadCell VS110R

Protocols: PROFINET · EtherNet/IP · Modbus TCP · MC
Body: 133 g · aluminum

Space is the limit

ReadCell VS95

Connection: RS232C · Ethernet, TCP/IP
Body: 44.5 × 36.0 × 23.0 mm · 101 g

Small codes, code grading

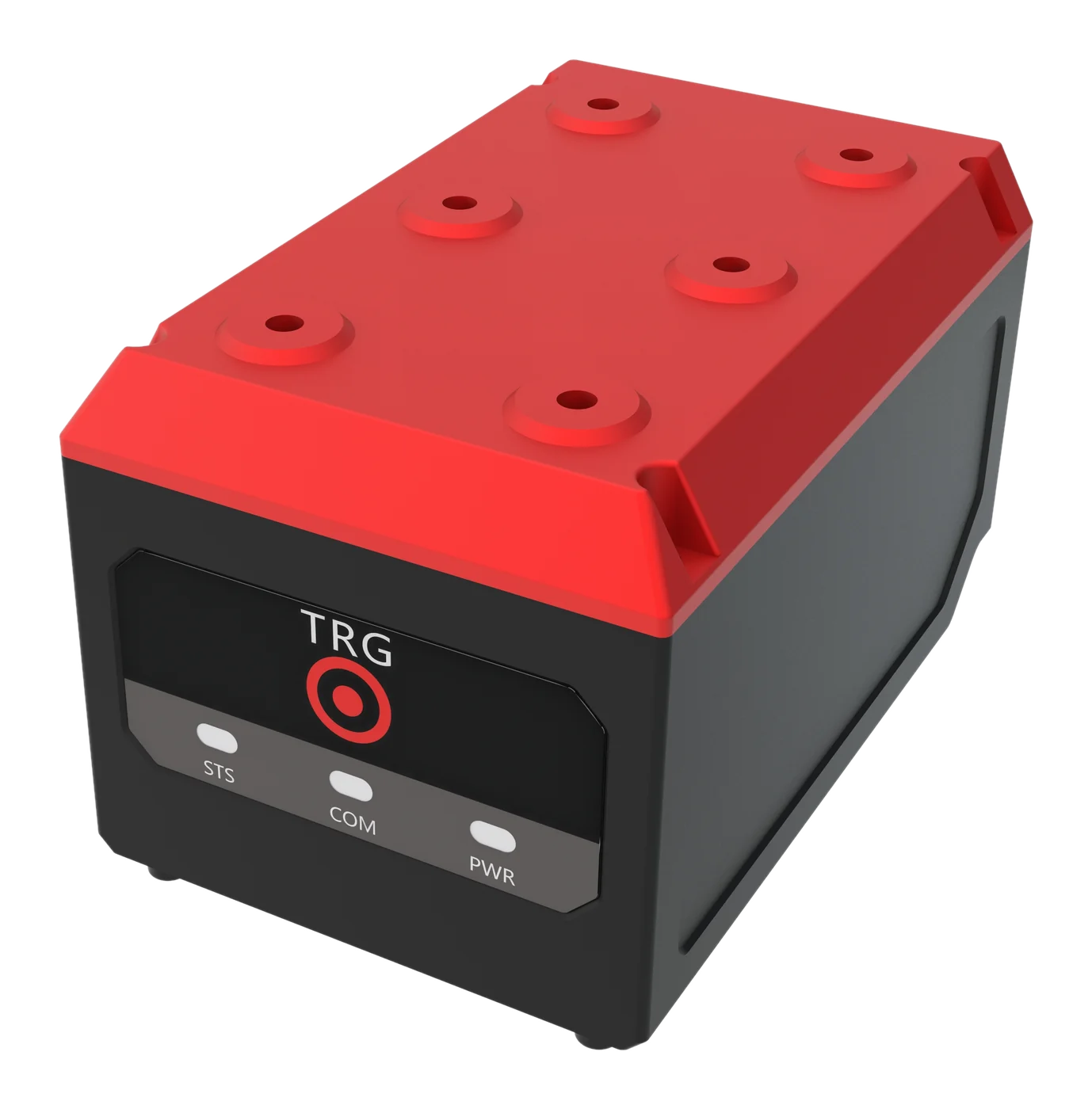

ReadCell VS210

Min. 2D element: 0.023 mm
Grading: ISO/IEC 15415 · 15416 · 29158

Used on production lines at

FoxconnFixed-mount

LuxshareFixed-mount

BYDHandheld

Send us a photo of the board code.

With the board size and the distance you can mount at, we suggest the reader and the setup.
