Industrial Barcode Scanners & Readers

An industrial barcode scanner reads 1D, 2D and direct part mark codes on the production line and hands the result to a PLC or host. Ours come in six families, from a 20 g embedded module to cordless DPM handhelds.

Smart fixed-mount

VS110R

Compact smart code reader

1.3 MP or 2.3 MP global shutter
PROFINET · EtherNet/IP · Modbus TCP · MC
45.4 × 47.0 × 29.87 mm · 133 g

Most requested

Compact fixed-mount

VS95

Ultra-compact code reader

1280 × 1024 global shutter, 60 fps
RS232C (DB9) · Ethernet, TCP/IP
44.5 × 36.0 × 23.0 mm · 101 g

Most requested

Smart fixed-mount

VS210

AI smart code reader with code grading

Minimum 2D element 0.023 mm
ISO/IEC 15416 · 15415 · 29158 grading
2 in / 3 out · 280 g

Smart fixed-mount

VS600E

Smart code reader, M12 lens

1920 × 1200, 60 fps
Lens options 6 / 8 / 12 / 16 mm
60 × 68 × 39.1 mm · 240 g

Compact fixed-mount

VS90

Compact code reader, USB / RS232

1280 × 1024 global shutter
RS232C · USB HID · USB COM
5–30 VDC · 130 mA at 24 V

Scan module

VS80

Embedded 2D scan module

32 × 15.1 × 16.5 mm · 20 g
5–24 V · USB / RS232
Motion tolerance 1 m/s

Industrial DPM handheld

VS320-DPE

Corded DPM reader, Ethernet option

Direct white, diffuse red and blue
Ethernet · PROFINET · EtherNet/IP
1.8 m drop to concrete

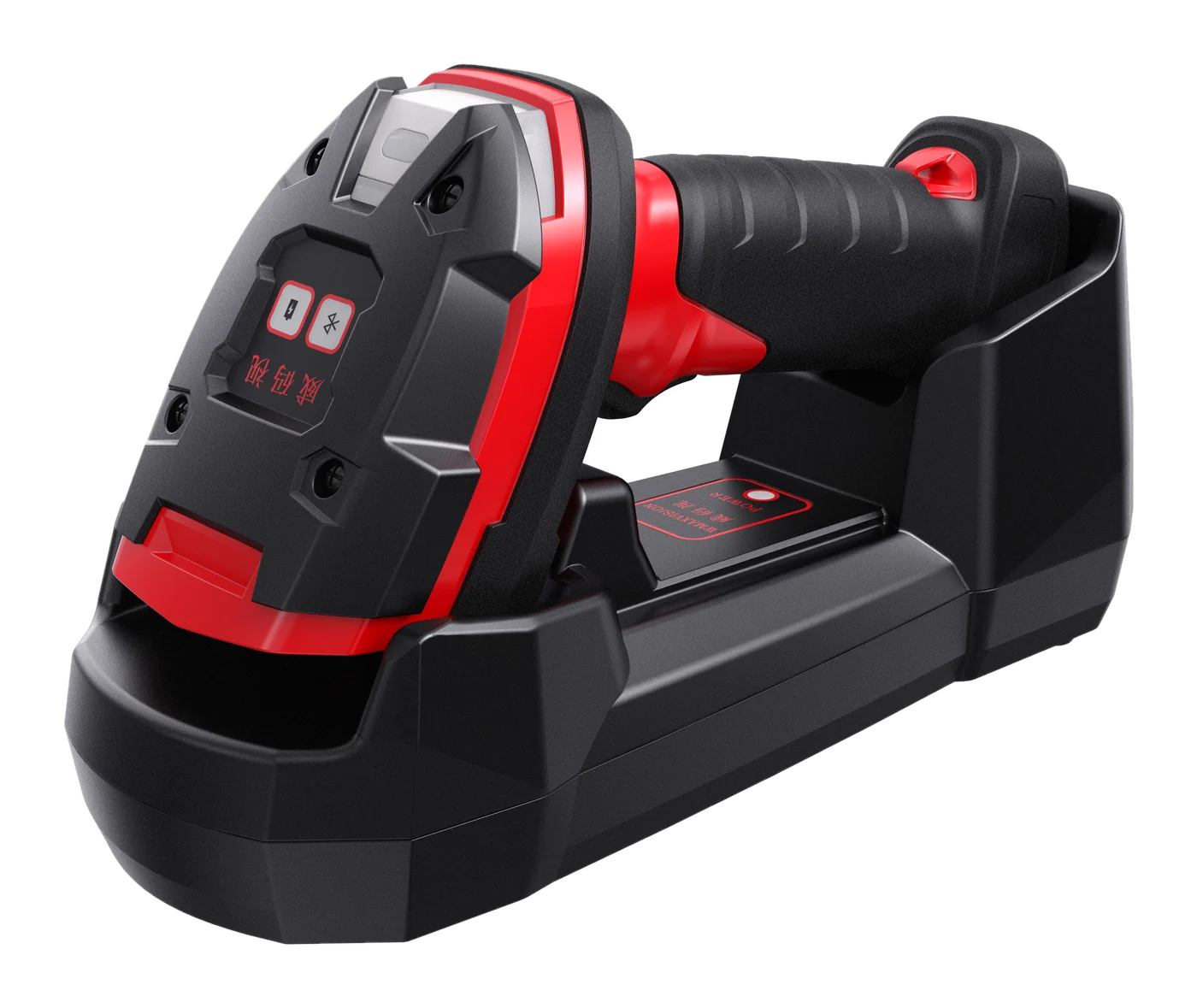

Industrial DPM handheld

VS322-DPE

Cordless DPM reader

Bluetooth 4.2 or 2.4 GHz via cradle
12,000+ scans per charge
1.8 m drop to concrete

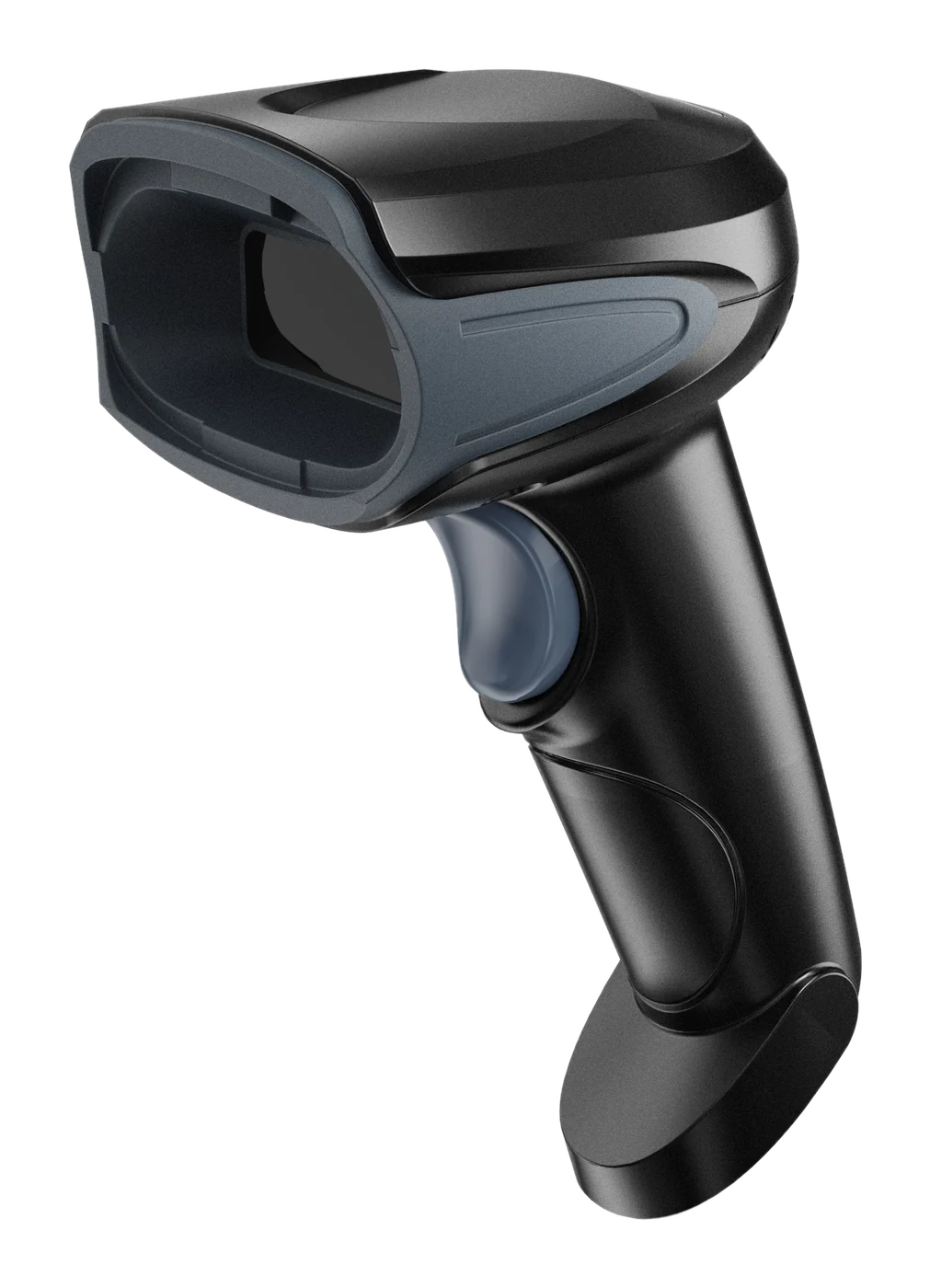

General DPM handheld

VS420-DPE

Corded DPM reader

Direct white, diffuse red and blue
RS232 · USB HID · USB COM
147 g · IP54

General DPM handheld

VS422-DPE

Cordless DPM reader

Bluetooth 4.2 or 2.4 GHz via cradle
Horizontal or vertical cradle
1.2 m drop to concrete

Industrial handheld

VS400

Corded 2D scanner, HD / HP / DPM

44° × 34° field of view
RS232 · USB HID · USB COM
147 g · 1.2 m drop

Industrial handheld

VS402

Cordless 2D scanner

2.4 GHz up to 100 m · Bluetooth 4.2
12,000+ scans per charge
1.2 m drop to concrete

Long-range handheld

VS300-ER

Corded extended-range scanner

Code 39 15 mil: 13–240 cm
Data Matrix 100 mil: 18–650 cm
USB · RS232

Long-range handheld

VS302-ER

Cordless extended-range scanner

2.4 GHz up to 100 m (open space)
Stores 20,000 records
1.5 m drop

Which family fits your station?

Ask for a recommendation

The reader hangs over a line

Fixed-mount. Take a smart reader if the PLC needs PROFINET or EtherNet/IP; a compact one if space is the limit.

Fixed-mount readers

The code is marked into metal

DPM handheld. Multi-angle light brings up dot-peened and laser-etched marks on shiny or curved parts.

DPM handhelds

It goes inside your machine

Scan module or compact reader. The VS80 is 32 mm long and runs on 5–24 V.

Scan module

Not sure which one? Send us the code.

A photo of the code, the distance, and what it connects to is enough to start.
